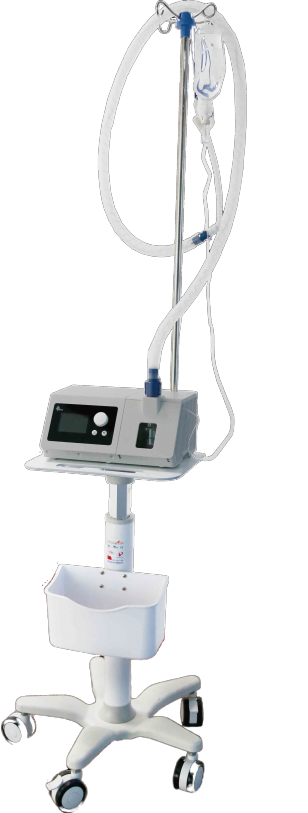

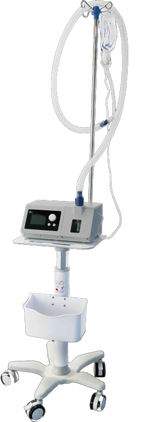

H-80 Series High Flow Humidifier

Name: H-80 Series High Flow Humidifier
Brand: BMC
SKU: 6137289
Price: 5500.00 EUR
Availability: InStock

SKU: 6137289

Still need help? Contact us!

Free shipping over €150

We offer price-match

Hassle-Free Returns

The BMC H-80 Series is a professional High Flow Nasal Cannula (HFNC) device designed to deliver heated and humidified air-oxygen mixtures at flow rates up to 80 L/min. It provides effective respiratory support for patients with spontaneous breathing who require high-flow oxygen therapy to improve oxygenation and reduce the work of breathing.

High Flow Output – Adjustable flow rates from 2 to 80 L/min to wash out anatomical dead space.
Intelligent Humidification – Integrated heated humidifier and heated circuit ensure optimal airway hydration.
Precise Temperature Control – Adjustable settings (29°C to 37°C) to prevent airway dryness and irritation.
Oxygen Blending – Automatically monitors and displays Oxygen Concentration (FiO2) for safety.

The BMC H-80 Series is the ideal solution for home and clinical management of COPD, respiratory insufficiency, and hypoxemia.

In The Box 📦

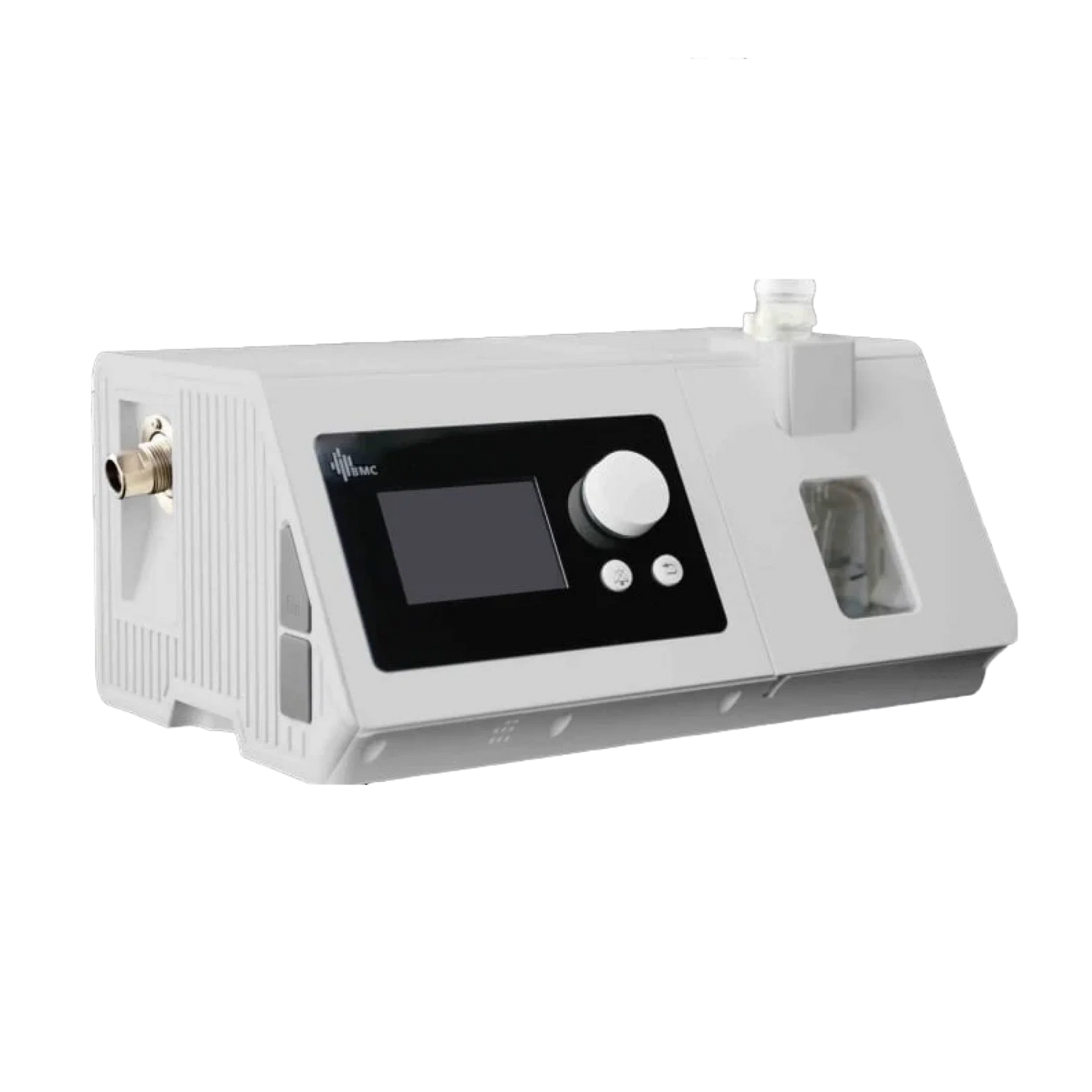

BMC H-80 Series High Flow Device
Integrated Heated Humidifier
Heated Breathing Tube
Water Chamber
High Flow Nasal Cannula
Air Filter
Power Cord
User Manual

Setup & Use 📘

Fill the water chamber with distilled water and insert it into the side of the unit. Connect the heated tubing to the air outlet and the electrical port. Connect your High Flow Cannula to the end of the tube. If supplemental oxygen is prescribed, connect your oxygen source (concentrator or tank) to the oxygen inlet on the back. Turn on the device, set your target temperature and flow rate, and begin therapy.

Advanced Respiratory Support with Superior Humidification

Step up your respiratory care with the BMC H-80 Series. Unlike standard oxygen concentrators or CPAP machines, this High Flow Nasal Cannula (HFNC) device delivers a precise mixture of air and oxygen at high velocities. This mechanism generates a mild positive airway pressure (PEEP effect) and effectively flushes out carbon dioxide (CO2) from the upper airways. With its fully integrated heated humidification system, it ensures that even at high flow rates, the air remains warm and moist, protecting the lung tissue and maximizing patient comfort.

Wide Flow Range (Up to 80 L/min)

The H-80 Series offers exceptional versatility with a flow range of 2 to 80 liters per minute. Higher flow rates are essential for meeting the inspiratory demand of patients in respiratory distress, helping to reduce the effort required to breathe. By delivering flow rates higher than the patient's own peak inspiratory flow, the device ensures consistent oxygen concentration delivery.

Intelligent Temperature & Humidity Control

Dry, high-velocity air can be damaging to the respiratory tract. The H-80 features a sophisticated climate control system with 7 levels of humidity and 3 temperature settings (29°C, 31°C, 34°C, 37°C). The heated breathing tube prevents condensation (rainout) while ensuring that the air reaching the patient is optimally saturated, promoting better mucociliary clearance and comfort.

Integrated Oxygen Monitoring

Safety is a priority in oxygen therapy. The H-80 Series includes an internal oxygen sensor that continuously monitors the Fraction of Inspired Oxygen (FiO2). It displays the real-time oxygen percentage on the screen, allowing caregivers or patients to adjust the external oxygen source to achieve the exact therapeutic target prescribed by the physician.

Features

AutoFlow & SmartFlow Modes

The device features intelligent algorithms that can automatically adjust flow parameters (in specific sub-models) to match the patient's breathing rhythm, ensuring synchronization and comfort.

Heated Breathing Circuit

Includes a specialized heated wire tube that maintains the air temperature from the machine all the way to the nasal cannula, preventing the cooling that leads to water buildup in the hose.

Large 3.5" Color Display

The intuitive interface displays critical data such as Flow Rate, Temperature, and FiO2 percentage in large, easy-to-read numbers. The simple dial knob makes navigating menus effortless.

Trend Review Function

The device stores therapy data, allowing patients and doctors to review trends in usage, temperature, and humidity over 1, 3, or 7 days to evaluate treatment efficacy.

Detachable Water Chamber

The humidifier chamber is designed for easy removal and cleaning. It features a large water capacity to support long therapy sessions without running dry.

Comprehensive Alarms

Equipped with multiple safety alarms, including blockage alerts, high/low temperature warnings, and tube disconnection alerts, ensuring immediate notification of any therapy interruption.
