Nox A1 PSG System

Description

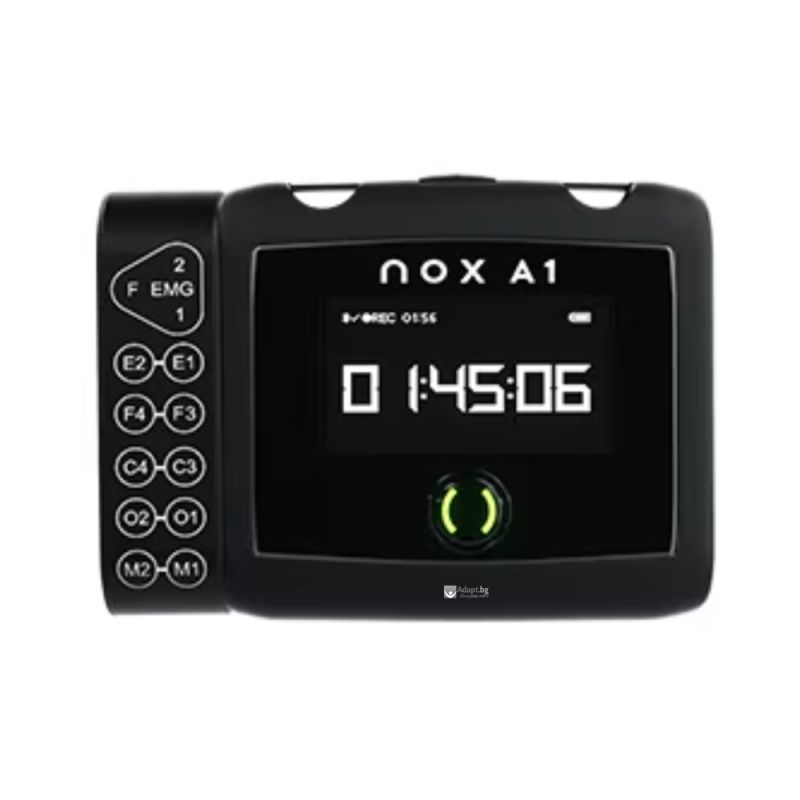

NOX A1s™

Portable and easy-to-use polysomnography system

Like its predecessor, the Nox A1s is an easy-to-use1, portable polysomnography (PSG) system that enables home-based or in-lab diagnosis of sleep-related breathing disorders. With an ergonomic design, the device has been developed to record a high-quality signal.

The Nox A1s is a versatile, compact and lightweight polysomnography (PSG) device that delivers high-quality signals while prioritizing patient comfort. Its dual functionality allows for both Type I in-lab sleep studies and unsupervised Type II home sleep studies.

FEATURES

• Ease-of-use
  Experience unparalleled simplicity with this redesigned, ergonomic PSG system. Its intuitive interface seamlessly integrates with the Noxturnal software and mobile app, streamlining workflows for both clinicians and patients. This user-friendly approach simplifies sleep studies, improves efficiency, and enhances the overall experience for everyone involved.

• Clinical accuracy
  Achieve diagnostic confidence with this comprehensive polysomnography system. Equipped with integrated respiratory inductance plethysmography (RIP) and a high-fidelity digital microphone, it captures precise physiological data for accurate sleep scoring and reliable diagnoses. This advanced technology empowers clinicians to confidently identify and assess sleep disorders, paving the way for effective treatment plans and improved patient care.

• Efficiency
  This cutting-edge PSG system leverages Bluetooth® Low Energy to ensure seamless data transmission, enabling real-time monitoring and synchronized video capture for comprehensive sleep studies. Equipped with a USB-C connection and Nox’s advanced high-resolution RIP technology, this device optimizes efficiency and accuracy for both in-lab and home sleep testing.

Nox SAS

Revolutionizing sleep diagnostics, the Nox SAS offers a groundbreaking approach to polysomnography. This innovative system captures EEG, ECG, and EMG signals through strategically placed forehead sensors, eliminating the need for cumbersome scalp and chin electrodes. This streamlined design empowers patients to undergo comprehensive sleep studies in the comfort of their own homes, with accuracy comparable to traditional in-lab PSG. Compatible with the Nox A1s system, the Nox SAS simplifies setup and data collection, saving valuable time for both clinicians and patients while expanding access to crucial diagnostic testing.

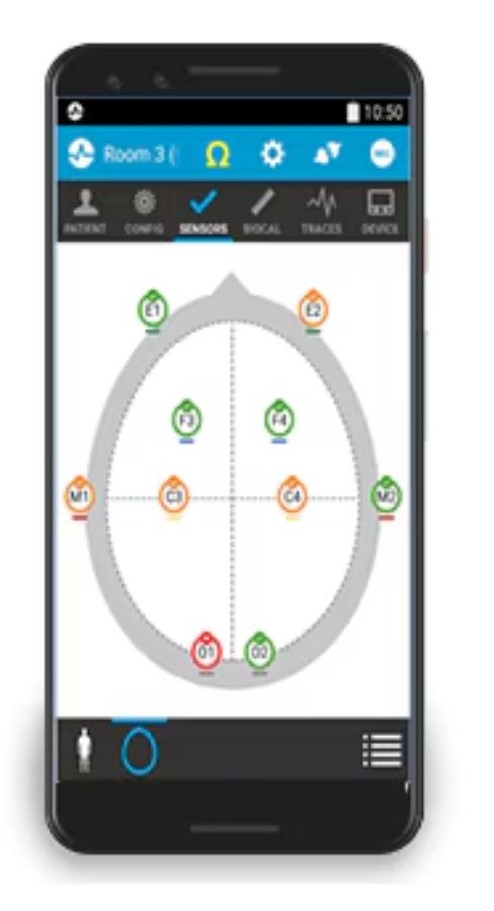

Noxturnal App: Smart assistant for simplified sleep studies.

This intuitive Android™ application, compatible with your mobile phone or tablet, revolutionizes how you manage sleep diagnostics. Connect wirelessly to the Nox A1s Recorder and unlock a range of powerful features designed to enhance your workflow:

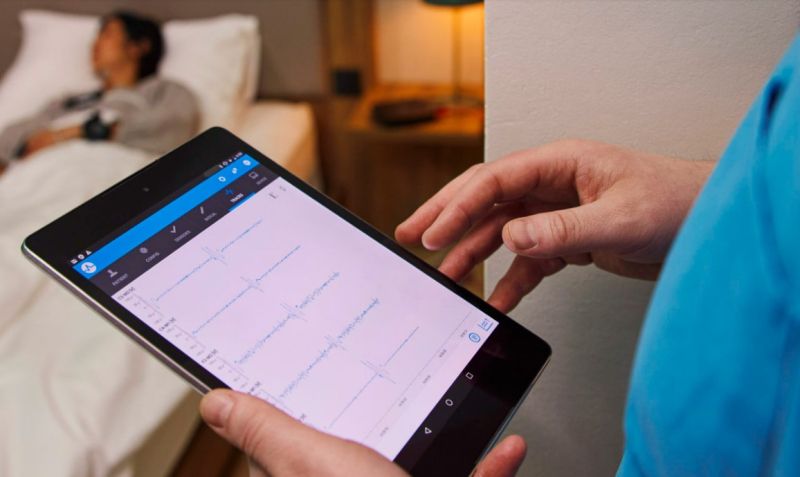

• Real-time Monitoring: Effortlessly monitor patient status and live signals, ensuring optimal data capture.
• Remote Control: Configure and initiate recordings remotely, providing flexibility and convenience.
• Effortless Calibration: Perform biocalibration and impedance checks directly from your device, streamlining the setup process.
• With the Noxturnal App, experience a new level of efficiency and control in conducting sleep studies.

NOX C1s Access Point Device

This versatile device expands the capabilities of the Nox A1s system (compatible with both conventional and Nox SAS setups), enabling online sleep studies with synchronized video recording. By simply inserting a Bluetooth dongle into the Nox C1s USB input, you can unlock a new dimension of data capture.

Enjoy enhanced Bluetooth connectivity that allows patients greater freedom of movement during in-lab recordings, without compromising signal quality. The Nox C1s also features 12 DC channels, offering compatibility with a wide range of third-party external devices for expanded research and diagnostic capabilities.

The Package Includes:

Essentials:

• Nox Carry Case: Start with the case to keep everything organized.
• A1s Recorder Machine: The core of the system.
• Noxturnal CD: Software for setup and analysis.
• USB-C Cable: For charging and data transfer.
• AA Battery – 2 units: Power the recorder.
• AAA Battery – 2 units: Likely for the oximeter.
• Nox Lid key: To open the recorder battery compartment.

Sensors and Cables:

• Nox A1 EEG Head Cable 90 cm (35 in), Adult: For brainwave monitoring.
• Nox A1 EEG 5 Lead Gold Electrode Cable – 2 pieces: Connects to the head cable.
• Nox Snap-on Double Lead Black 148/150 cm (58/60 in): Likely for ECG or EMG.
• Nox Snap-on Double Lead Orange 50/100 cm (20/40 in): Possibly for limb movements.
• Nox Snap-on Double Lead Grey 148/150 cm (58/60 in): Similar to the black leads.
• Nox Abdomen Cable: For respiratory effort monitoring.
• Nox RIP belts Disposable, Medium – 2 sets: Alternative respiratory effort sensors.

Accessories:

• Nonin 3150 oximeter: Measures blood oxygen levels.
• Nox Cannula with Filter – 2 pieces: For nasal airflow monitoring.

Full Technical Specifications

Signal Specifications

• Available Signals: Thorax and Abdomen RIP, Nasal pressure/Mask pressure, Snore signal, Audio and snoring channel, 13 unipolar channels, two bipolar channels, Position, Activity, SpO2, Pulse, Plethysmography, and more.

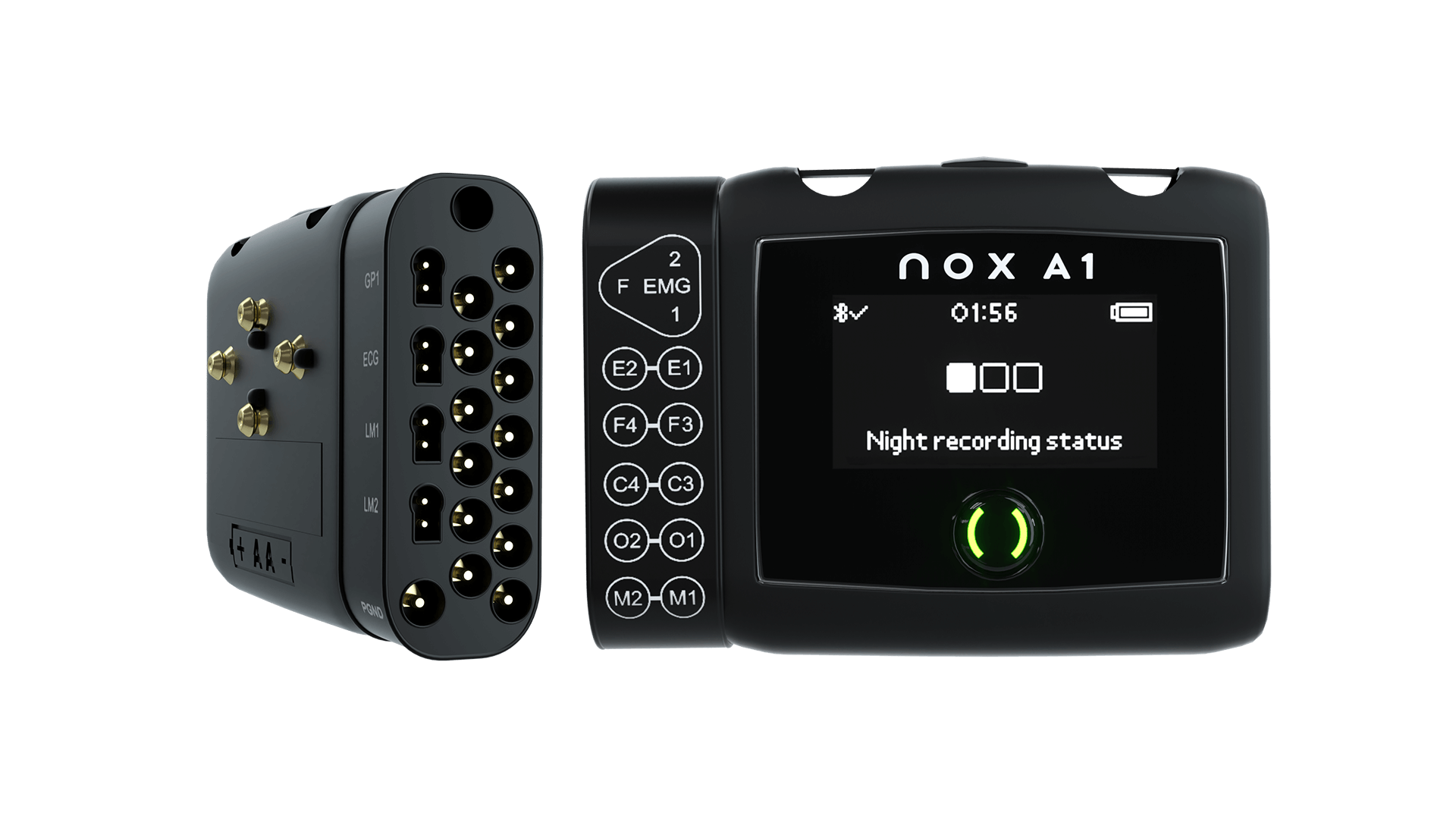

  • Unipolar Channels: 13x Unipolar Channels – Touch proof connector DIN 42-802, ±3.2mV input range < 1 µVrms noise, 512 kHz sampling rate.
  • Bipolar Channels: 4x Bipolar Channels – Keyhole connector, ±1024mV input range, < 3 µVrms noise, 512 kHz sampling rate, 24-bit ADC.
  • Flow/Pressure Signal:
    • 2x RIP Channels – Thorax and abdomen respiratory inductance plethysmography, 200 Hz Sampling.
    • 1x Flow/Pressure Channel – -5cmH2O to +50cmH2O input pressure range, DC-80 Hz, <1 mmH2O noise.
  • Activity/Position Signals: Internal 3 axes, ±2 g.
  • Sound Signals: 1MHz sampling, internal 8 kHz bandwidth.

Wireless Interface

• Bluetooth® V5.0 Low Energy – wireless interface for external devices.

Performance Specifications

• Storage Capacity: 4 GB internal memory.
• Recording Time: 20-30 hours with a new lithium battery.
• PC Communications: USB 2.0 hi-speed.

Physical Specifications

• Power Source: One 1.5V AA battery during recording; Host PC USB during data download.
• Battery Type: Alkaline primary, Lithium primary, nickel-metal hydride rechargeable (NiMH).
• Battery Cover: Tamper-proof and locked.
• Device Dimensions: 82 mm W x 62 mm H x 26 mm D.
• Weight: 92 g (120g with battery).
• Display: OLED – dimensions 19 x 35 mm (0.75 x 1.38 in), resolution 128 x 64 dots.
• USB 2.0 Connection: USB Type C.

Minimum PC Requirements

• Minimum PC Requirements: Windows 8 and higher Processor: X64 based Intel or AMD, 1.7 GHz or faster 2GB RAM, 4 GB of free disk space Resolution: 1024 x 768 or higher
